Lithium traction battery solutions

[one_half]

PowerTech Systems is specialized in Lithium-ion battery for traction pack. Latest Lithium technology can advantageously replace lead acid batteries ( see comparative characteristics of Lead-acid and Lithium-Ion ). lightweight packs, combined with small bulk and long service life, make Lithium technology the way forward for traction applications.

We select and qualify the best products to design and implement reliable, powerful and safe solutions.

[/one_half] [one_half] Lithium-Ion Traction
[/one_half] [column_break] For some advanced needs, additional functionality can be integrated to the battery: state of charge (SOC) gauge, power relays, cooling system, bus communication, etc..

Our mission:

  • Design Lithium traction systems that will maximize vehicle range
  • minimize the weight and bulk of the battery
  • provide scalable and modular systems, easily integrated and maintenance-free
  • Design open systems that allow communication with external devices (controller, charger, dashboard, etc..)

We offer three types of battery technologies for traction systems : Lithium Iron Phosphate (LiFePO4), Lithium Manganese Oxide (LMO) and Lithium Manganese Cobalt (NMC). For some specific projects, we can offer Lithium Titanate batteries (LTO).

Each technology addresses some specific feature (available energy, charge and discharge capacity, number of cycles, etc..) in order to meet clients specifications.

Personal mobility :

Personal vehicles are equipped with small capacity batteries (5KW max) and voltages up to 48V. The batteries must withstand deep cycles and be recharged quickly.

[one_third]

Electric bike

Electric bike
[/one_third] [one_third]

Lithium Electric golf trolley

Electric golf trolley
[/one_third] [one_third]

Lithium-ion Electric scooter

Electric scooter
[/one_third] [column_break]

Electric utility vehicles :

Lithium-ion batteries allow a substantial gain in autonomy and weight compared to lead acid batteries for the propulsion of electric vehicles. Lithium Iron Phosphate (LiFePO4) and lithium titanate (LTO) technologies are commonly used for electric utility vehicles.

[one_third]

Lithium LFP LifePo4 Mini electric vehicle

Mini electric vehicle
[/one_third] [one_third]

Lithium electric Utility Van

Utility Van
[/one_third] [one_third]

Lithium Iron Phosphate LFP Minibus and transportation

Minibus and transportation
[/one_third] [column_break]

Industry and robotics :

Lithium batteries allows for greater autonomy of industrial equipment as well as a substantial productivity gain. For the same bulk of battery, embedded lithium-ion energy solutions can in some case triple autonomy compared to conventional technologies.

[one_third]

LFP battery industrial trolley

Electric industrial trolley
[/one_third] [one_third]

Lithium battery electric Forklift

Electric forklift
[/one_third] [one_third]

Lithium battery for Robotic systems

Robotic systems
[/one_third] [column_break]

UAV and Aerospace

High energy density battery packs design requires the use of small cells flexible envelope. We mainly use NMC cells (Lithium Nickel Manganese Cobalt) for their exceptional weight / power ratio.
The design is made to minimize the weight of the onboard battery. Pack can be designed in several separate components to ensure balance in the avionics unit.

[one_third]

lithium battery for Drone and UAV

Drone and UAV
[/one_third] [one_third]

lithium-ion Electric-powered aircraft

Electric-powered aircraft
[/one_third] [one_third]

lithium-ion powered Drone and UAV

Utility UAV Drone
[/one_third] [column_break]

Marine :

Marine electric propulsion gains momentum. We design banks of batteries for marine propulsion. The use of cell Lithium Iron Phosphate (LFP) is recommended for this type of applications.

[one_third]

Lithium battery River shuttle

Electric River shuttle
[/one_third] [one_third]

Marine Lithium propulsion battery

Marine Lithium battery
[/one_third] [one_third]

Electric boat with Lithium battery

Electric boat
[/one_third] [column_break] [content_box style=”teal-grey” title=”see : PowerRack product line”] 19 inches Lithium-Ion battery system - PowerRack
19 inches Lithium-Ion battery system - PowerRack

PowerRack is a 100% modular, 19 inches Lithium-Ion battery system.
BMSMatrix® embedded system : this technology embeds PowerRack intelligence providing an incredible modularity and scalability to the system: PowerRack can manage ESS as small as 2.5kWh-48V, but can easily scale up to some large ESS of more than 1MWh-1000V. More about PowerRack…
[/content_box] [content_box style=”teal-grey” title=”see : PowerBrick product line”] PowerBrick-V-300

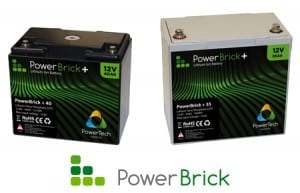

Batterie Lithium-Fer-Phosphate 12V PowerBrick

PowerTech Systems offers a range of 12v Lithium-Ion battery pack to meet most of our customer needs (up to 48V).
PowerBrick battery offer a high level of safety through the use of Lithium Iron Phosphate cylindrical cells and a built-in BMS.
PowerBrick has a 12V nominal voltage and can be assembled in series (4S maximum) and parallel (10P maximum) to reach operating voltages of 12V, 24V, 36V or 48V with energy up to 15kWh per parallel string. More about PowerBrick…
[/content_box] [content_box style=”teal-grey” title=”see : PowerModule Product line”] PowerModule : Scalable Lithium-ion system for traction and industrial applications
PowerModule : Scalable Lithium-ion system for traction and marineapplications

PowerModule system is an advanced energy solution for traction applications requiring high capacity and/or high voltage (up to 700 volts). The PowerModules can be connected in series or parallel to increase capacity or voltage. Up to 255 modules can be assembled in a single system. More about PowerModule…
[/content_box] [content_box style=”teal-grey” title=”see : PowerStart product line”] 12V Lithium-ion Start battery : PowerStartPowerSport_all
The PowerStart Lithium-Ion is a lightweight Lithium-Ion battery offering a very high level of power for easy start of internal combustion engine.
PowerStart battery embeds high-performance Lithium Iron Phosphate cells designed to provide extreme discharge current flow. More about PowerStart…
[/content_box]
